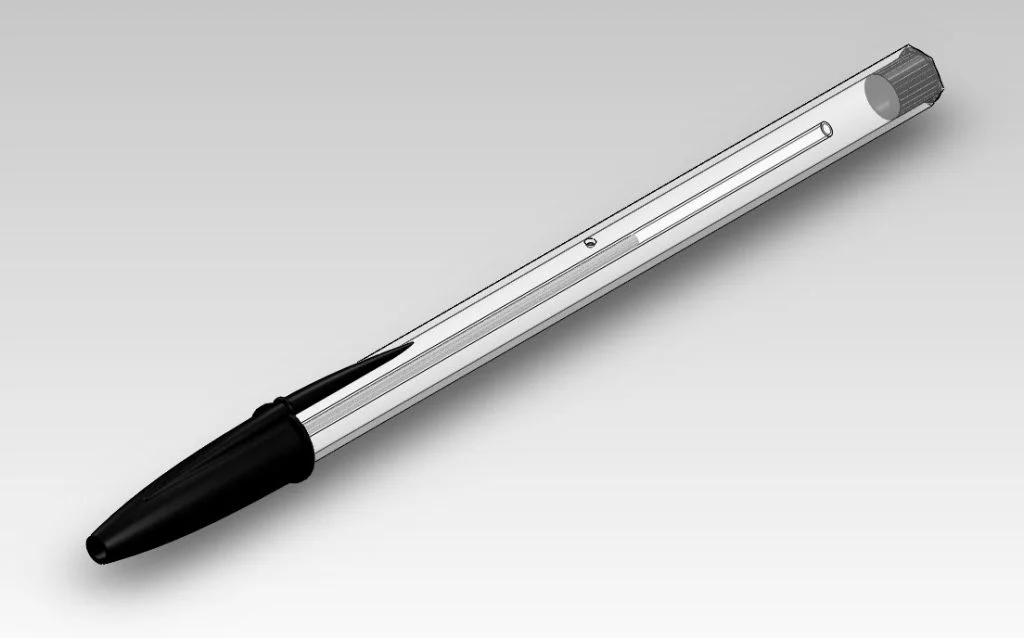

This pen was a fun assembly to model. For the most part, it was quite an easy job. The only challenging part was the cap, and I was able to complete it using a loft feature, a mirror feature, and plenty of fillets. Suppress the distance mate to remove the cap. Enjoy the model, and thanks for viewing!
Dave Knight
Worcester Polytechnic Institute
Mechanical Engineering, 2013
