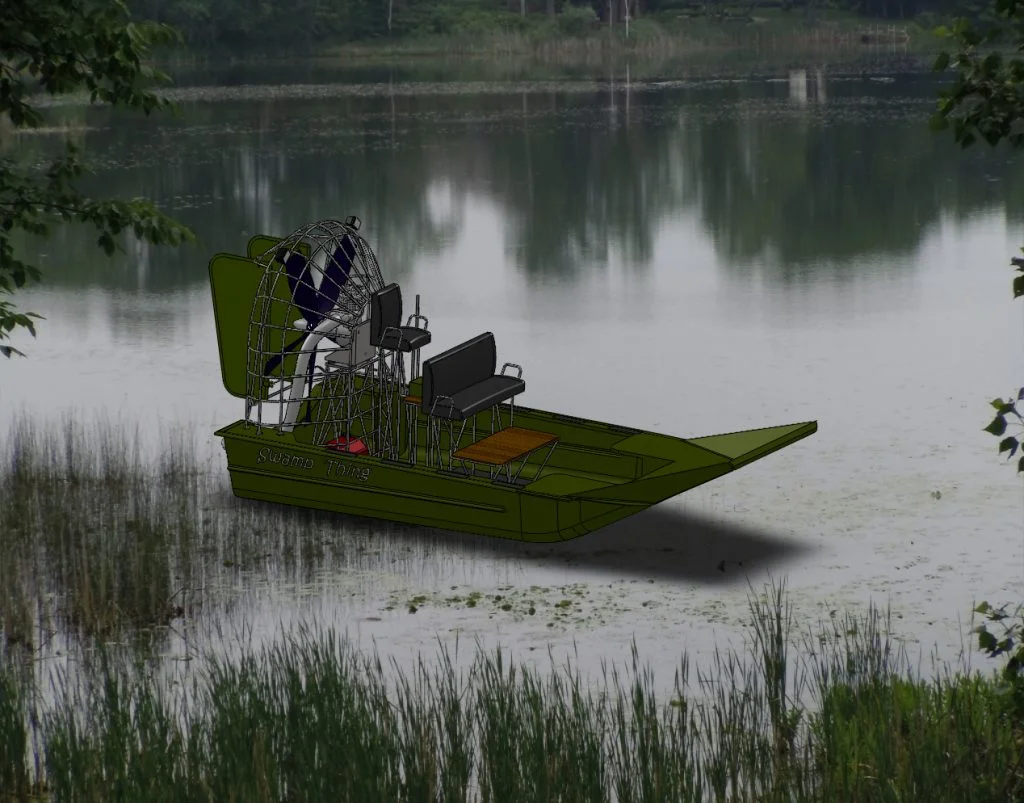

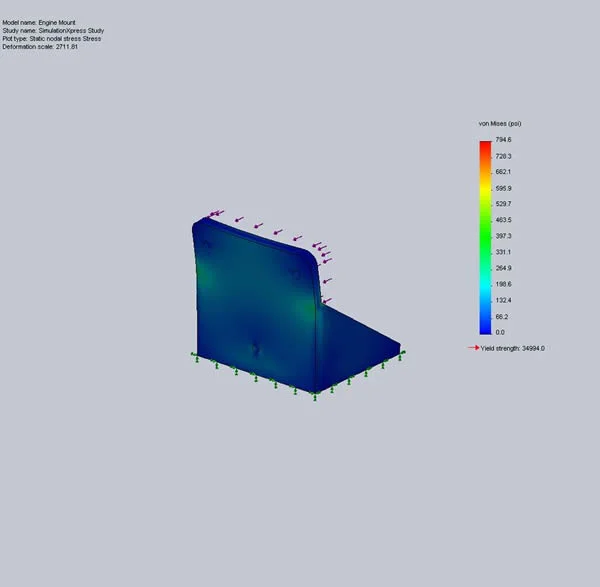

Brad Smith, student at Baker College, created this Air Boat model for Professor Robert Cadwell’s class and I am fortunate to share his final project with you. The zip file contains the models, finite element analysis results on a engine mount, videos and ppt presentations.

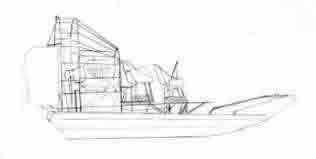

It truly shows the depth of a final project presentation. First there are sketches and photos. Then models of each component and the final assembly.
Models, Video and Presentation: Download Brad Smith_Air Boat Final
