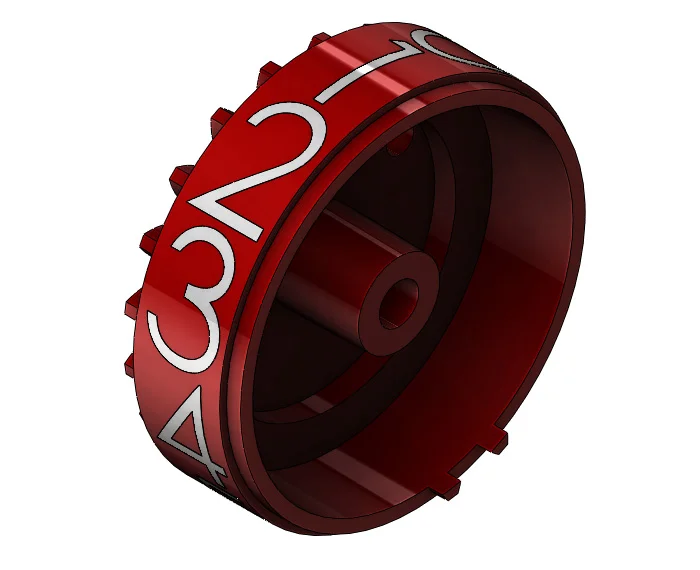

Analog Counter Wheel: The GearTrax2010 plug in was used to generate a profile for the gear which will advance the number wheel. The plug-in generates a part file with the desired gear profile. This sketch was copied from that part into this one.
A circular pattern is used to complete the gear teeth. The number of instances is defined by the information inputted into GearTrax.
Download: Analog Counter Wheel Complexity: Basic Features used: Revolve, Shell, Draft
