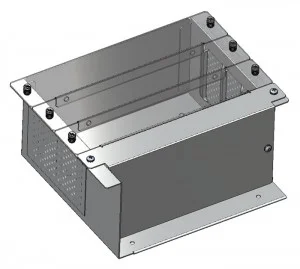

Card Cage Assembly: A sheet metal assembly showing PCB mounting and venting options.
The parts in this assembly showcase a method to mount PCB’s using a forming tool, and vent panels using cosmetic patterns.
Download: Card Cage Assembly Complexity: Moderate Features used: Sheet Metal Base Flange, Edge Flange and Hem, Forming Tool, Pattern and Mirror.
View all the Part Reviewer Tutorials here.
