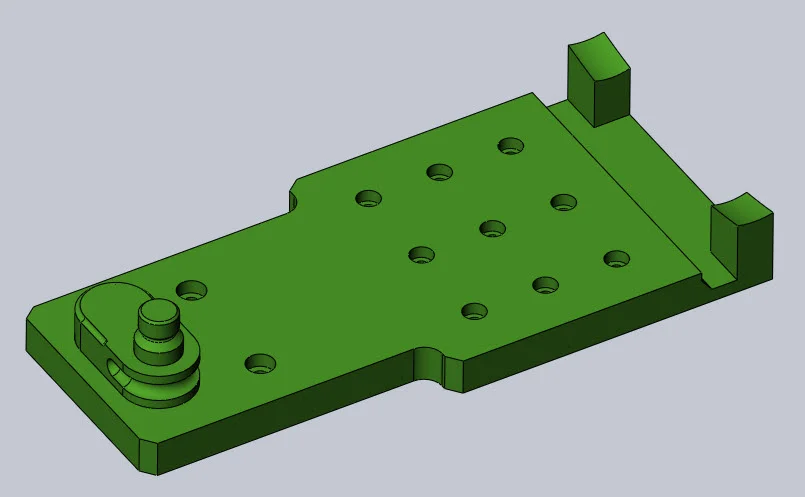

Complex Machine Part 1: This is a machined part that has mostly extruded features with a few revolved features, two swept cuts and a boundary cut. Learn the process of creating this machine part by downloading the part below and reviewing with the Part Reviewer tool inside SOLIDWORKS. This is part 1 in a 6 part series.
Download: Complex Machine Part 1 Complexity: Complex Features used: revolve, swept cut, boundary cut, mirror
View all the Part Reviewer Tutorials here.
DraftSight Download: In conjunction with DraftSight, Dassault Systèmes’ 2D CAD product, the 2D drawing(.dwg) file of the Complex Machine Part 1 tutorial is now available for download here.
