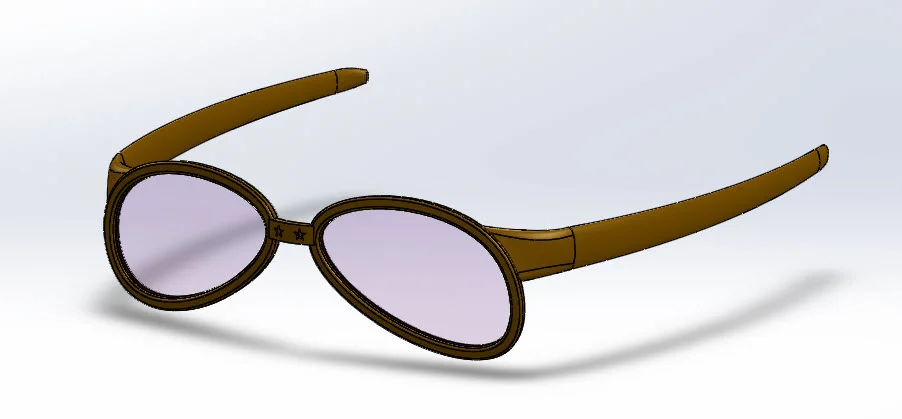

Complex Surface 6: This model was created using only surface body features and then the surface bodies are turned solid bodies using thicken commands. This part is symmetric about the Right Plane. A Planar Surface will be used as the outline for a Ruled Surface.
Download: Complex Surface Part 6 Complexity: Complex Features: Standard Trim, Offset Surface Command, Curvature control settings
View all the Part Reviewer Tutorials here.
DraftSight Download: In conjunction with DraftSight, Dassault Systèmes’ 2D CAD product, the 2D drawing(.dwg) file of the Complex Surface Part 6 is now available for download here.
