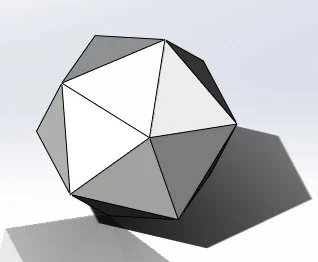

Icosahedron: The top 5 faces of the icosahedron are made with a surface loft. The first profile is a sketch converted from the top faces layout sketch. The second profile is a 3D sketch that contains a single point made coincident to the top vertex of the icosahedron.
Download: Moderate-Icosahedron Complexity: Moderate Features used: Surface Loft, 3D Sketch, Circular Pattern
