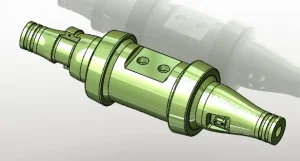

Moderate Machine Part 2: This is a machined part that has mostly revolved features with some extruded features and a lofted cut. During the design process you will use convert entities. It creates an “On edge” relation that will update correctly if the original revolve feature changes.Download the part below to learn the techniques needed to create this part. This is part two in a six part series. Take a look back at the Moderate Machine Part 1.
Download: Moderate Machine Part 2 Complexity: Moderate Features used: Extrude, Loft, Revolve, Mirror
View all of the Part Reviewer tutorials here.
