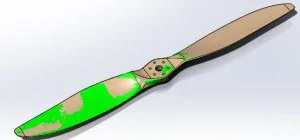

Reverse Engineered Propeller: This part is modeling differently from most SolidWorks parts. Because the model is a reverse engineer of an existing part using 3D scan data, design intent will not be built into the part. Many sketches will not be dimensioned, or use the “Fix” relation to lock them in. As this part is a copy of something all already exists, the ability to quickly make changes isn’t important.
Download: ComplexReverseEngineeredPropeller Complexity: Complex Features used: 3D scan, Extrude, Boundary Surface
View all the Part Reviewer Tutorials here.
DraftSight Download: In conjunction with DraftSight, Dassault Systèmes’ 2D CAD product, the 2D drawing(.dwg) file of the Self Centering Ring tutorial is now available for download here.
