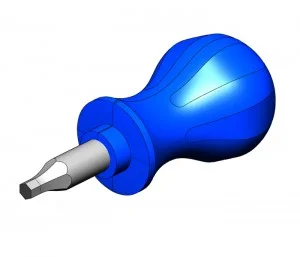

Screwdriver: This small screwdriver demonstrates how to create a handle with correct draft. It also models finger grips around the handle by using surface fills to replace a circular patterned split line. Download the part below to get started!
Download: Screwdriver Complexity: Moderate Features used: Surface extrude, boundary surface, split line, surface fill, circular pattern, draft, and revolve.
View all the Part Reviewer Tutorials here.
