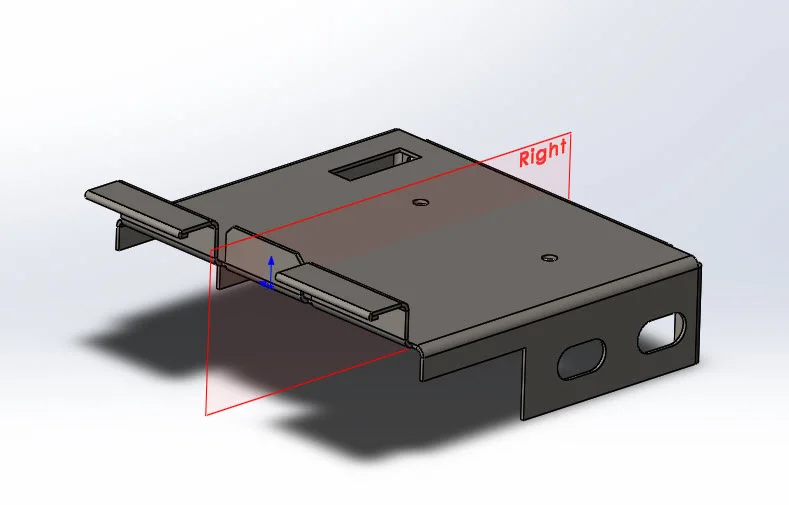

Simple Sheet Metal Part 5: This Sheet Metal part is symmetric vertically with respect to the Right Plane. Sheetmetal features are used so that the part can be flattened out to create a flat pattern. Base Flange/Tab feature can be used not only as the first feature on the model, but can be used to add more material at the same thickness as rest of part. Did you like this model? Check out Part 1, Part 2, Part 3, and Part 4 of the Simple Sheet Metal part reviewer tutorials to learn more!
Download: Simple Sheet Metal Part 5 Complexity: Basic Features: Sheet Metal, Base Flange, Break Corner, Cutouts
View all the Part Reviewer Tutorials here.
DraftSight Download: In conjunction with DraftSight, Dassault Systèmes’ 2D CAD product, the 2D drawing(.dwg) file of the Simple Sheet Metal Part 5 tutorial is now available for download here.
