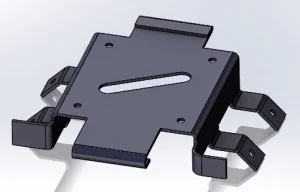

Simple Sheet Metal Part 1: This sheet metal part has a feature that determines the thickness and bend radius. A 14 Gauge Aluminum was used for this model. The Sheetmetal part is symmetric with respect to the right plane except for the last two edge flanges. Sheetmetal features are used so that the part can be flattened out to create a flat pattern. Download the part below to get started! This is part one in a six part series.
Download: Simple Sheet metal Part 1 Complexity: Basic Features used: Base Flange, Edge Flange, Hem, Cut Extrude
View the rest of the Part Reviewer tutorials here.
