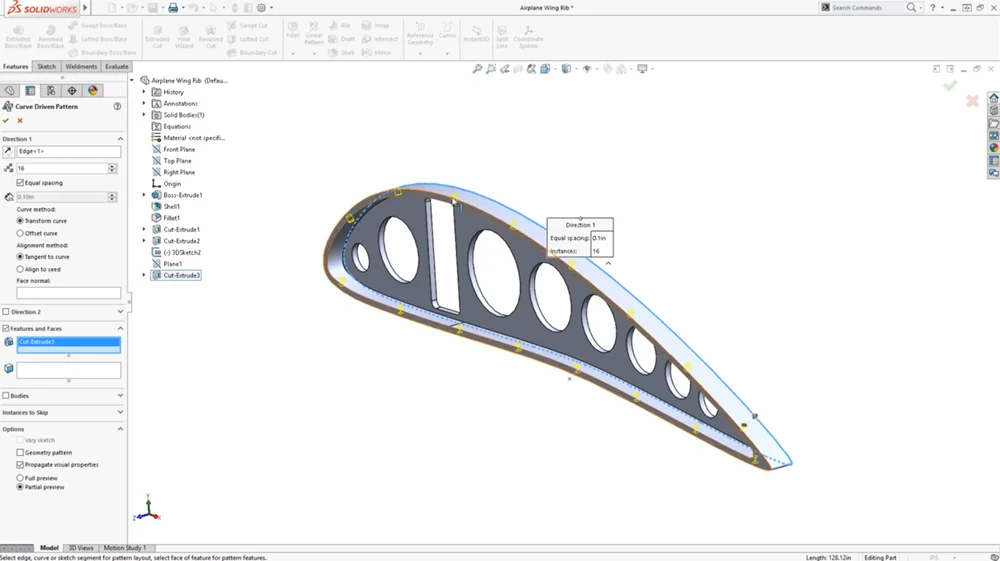

While some of the common patterning commands like Linear Pattern and Circular Pattern can accomplish your modeling needs, sometimes a feature needs to be patterned along a face that has a custom curvature. The Curve Driven Pattern command allows you to pattern along a curve, which is extremely helpful when the pattern needs to be created on a non-planar face. Check out the video below to learn more!
Want to see more SOLIDWORKS Tech Tips? Check out our playlist on YouTube to catch up on past videos or you can even jump ahead to the next video!
Do you have a suggestion for the next Tech Tip? Tell us in the comments; we’d love to hear your ideas!
